I gotta have tunes when I'm wheelin', camping, and DDing. Lately I've had a stack of engineering projects at school. This one is for Acoustics & Noise Control, a graduate level mechanical engineering course. As a final project, everyone uses what they've learned about acoustics to design a speaker. I decided to design a sealed enclosure for a 12" subwoofer.

The first step was using some data acquisition and laboratory equipment to do some free air tests on the driver itself. This gave me the Thiele Small parameters, which are used for designing the enclosure. These parameters are published by the speaker manufacturer, but in many cases (mine especially!) they differ widely for every speaker produced.

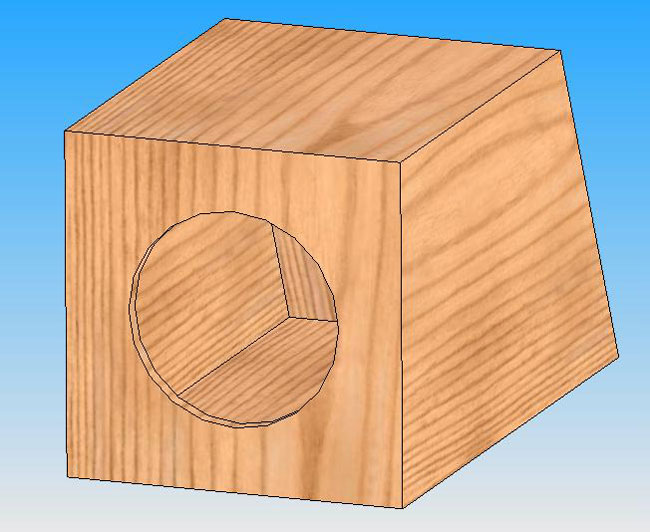

I will save you from future engineering jargon, but the end result is a box of almost twice the volume recommended by the manufacturer. After thinking through it, here's the design I came up with to fit in my '86 4Runner:

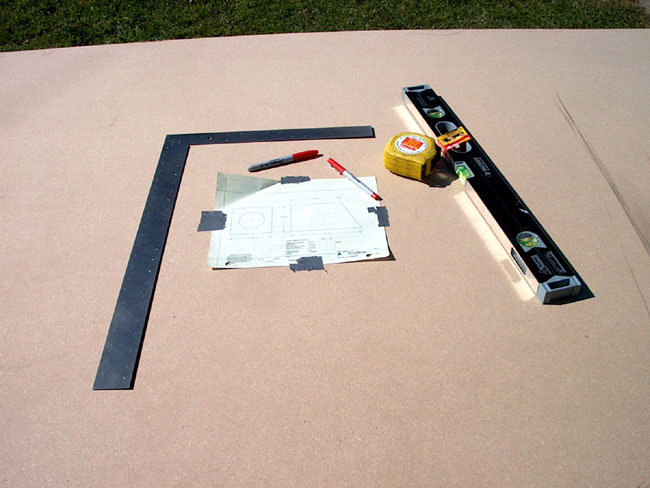

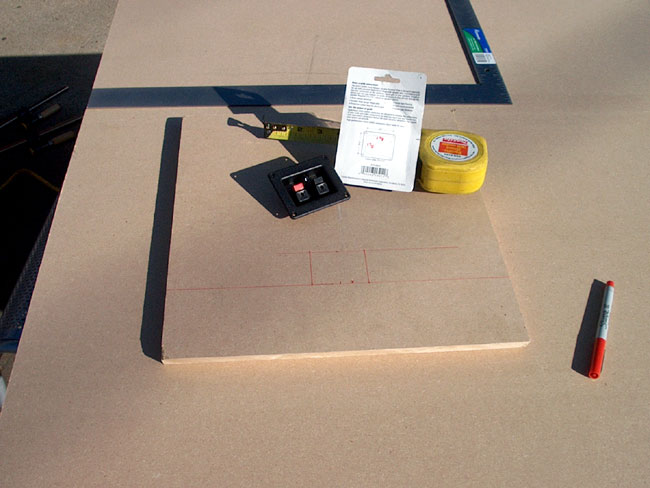

Below: Here are my layout tools. I used 3/4" MDF

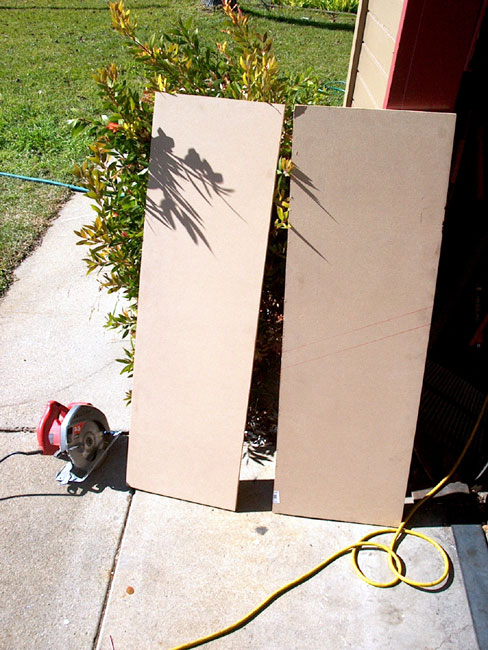

Below: The first few cuts with a cheap skillsaw. A table saw is nice, but I don't think it's necessary for this kind of project.

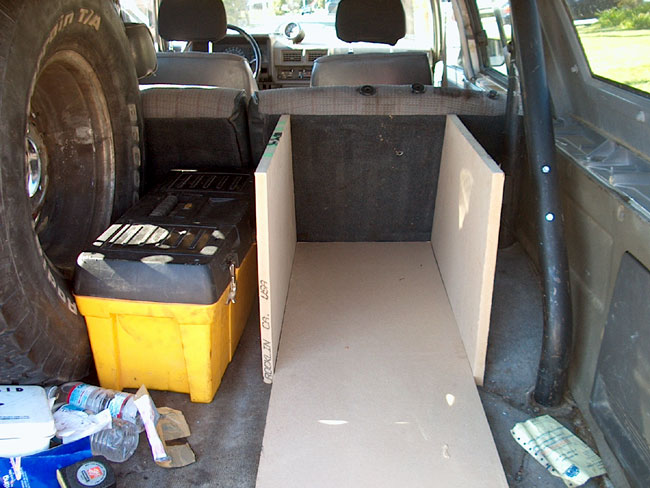

Below: Here's where the speaker is designed to fit in my 4Runner. I had it follow the lines of the rear seats and made it narrow enough so I could put my toolbox and spare tire next to it.

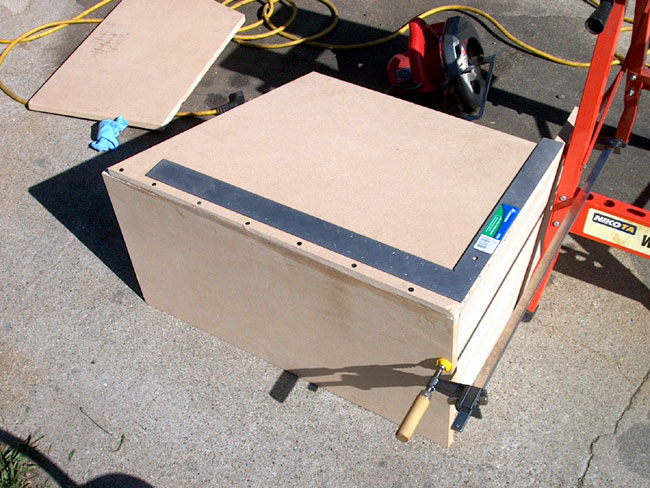

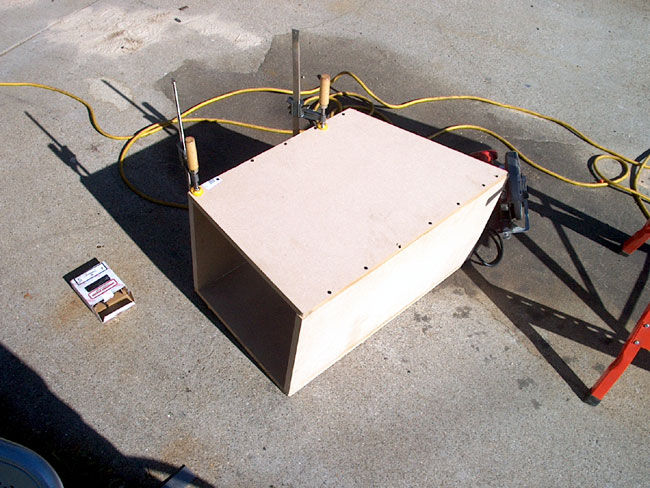

Below: These clamps are really handy! I used wood glue along each joint with screwed spaced 4" apart maximum.

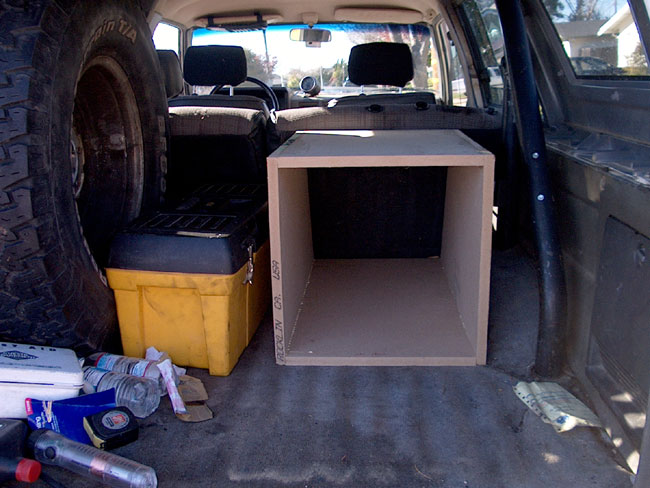

Below: Another trial fit to make sure things look right

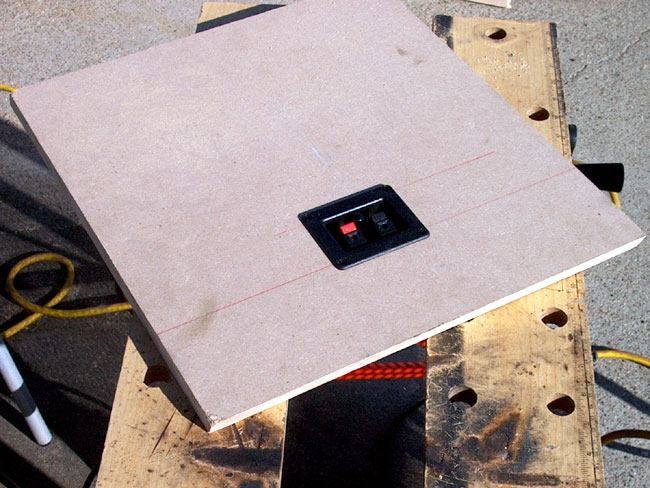

Below: I got this quick release terminal from Radio Shack. I'm glad I measured it because the cutout they recommended was oversized by about a half inch! I think it was a typo...





Just for reference, don't buy these crappy RadioShack terminals. They come unsprung easily and basically suck. I wish I had known this before I made the cutout for 'em.

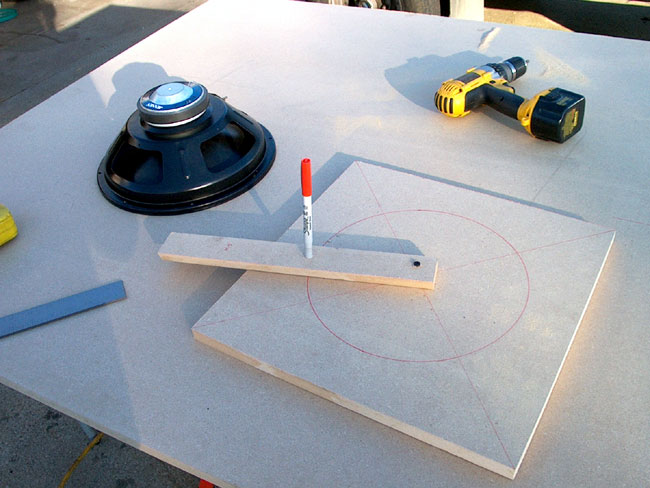

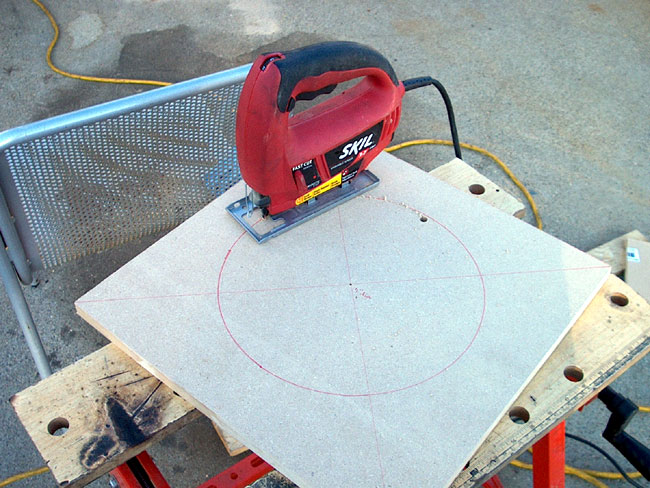

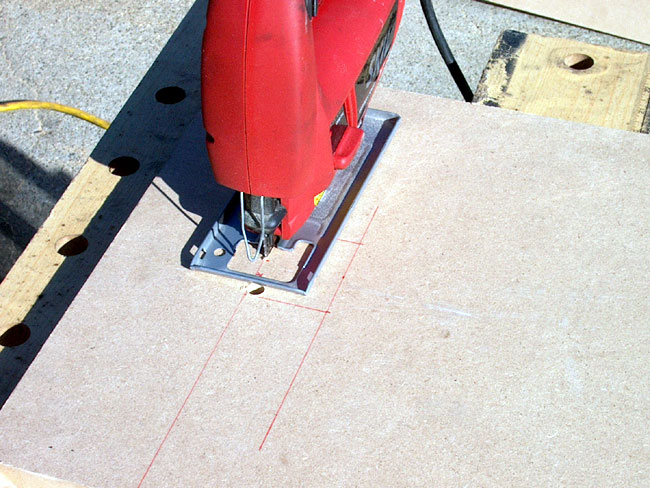

Below: I needed to make the hole for the driver, so I fashioned a compass out of some scrap. I used a screw in the center and drilled a 3/8" hole at the appropriate radius to fit a sharpie. Worked great!

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox11.jpg[/img]

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox12.jpg[/img]

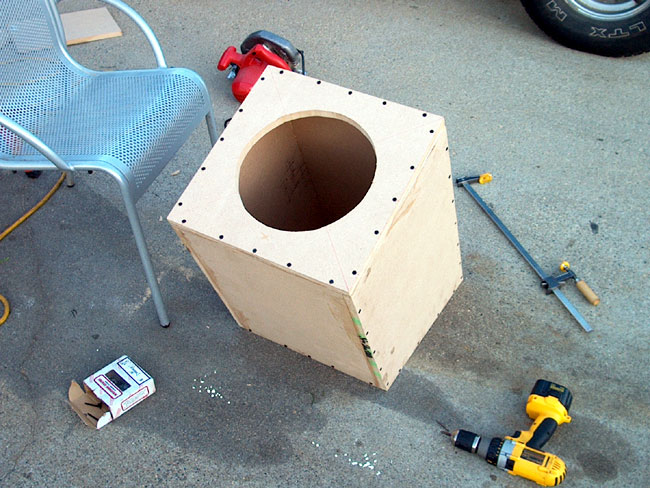

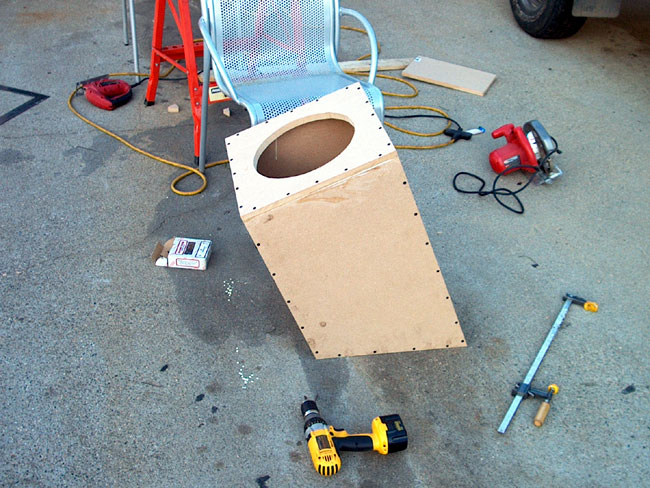

Below: Lots of screws and glue in this project

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox13.jpg[/img]

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox14.jpg[/img]

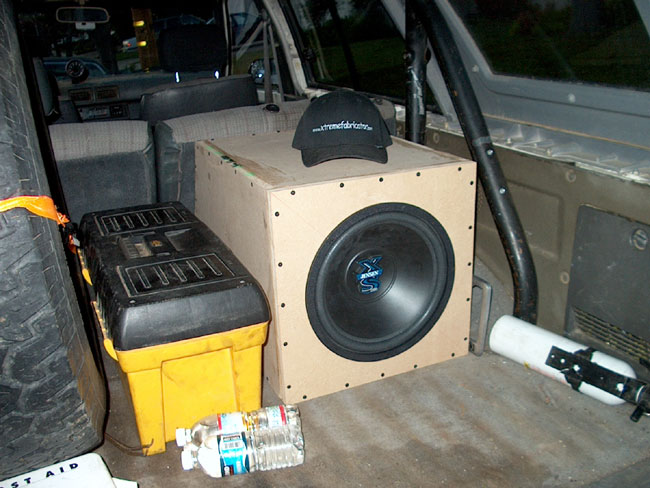

Below: Here's the nearly finished box in the truck.

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox15.jpg[/img]

Holy cow a little engineering makes a heck of a difference! I am really impressed with the response! I have had a few different speaker boxes in my truck of varying driver size and type (sealed, bandpass, ported, 8s through 12s) and this one blows them all away. The sound is incredible and I am discovering sounds in some songs that I had never heard before.

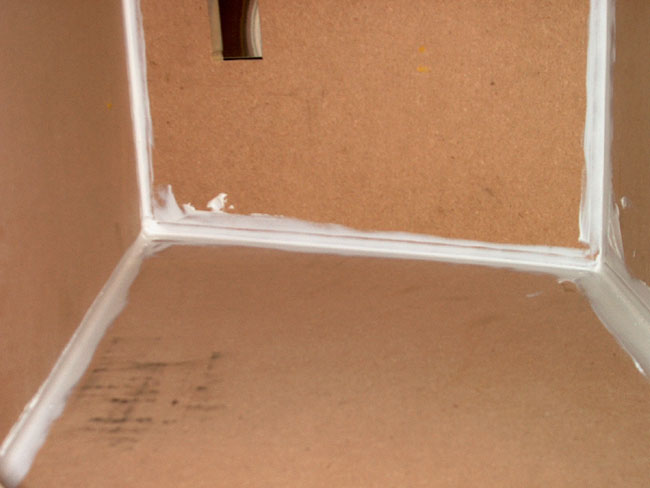

Below: The next step was sealing the inside corners with some caulk. I didn't hear any leakage, but it's standard practice to seal the insides. I suppose I should have done a better job of cleaning off the excess. Oh well.

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox16.jpg[/img]

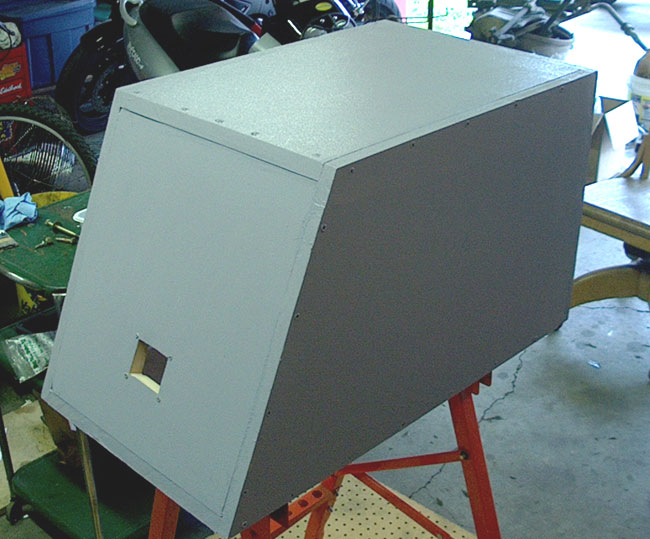

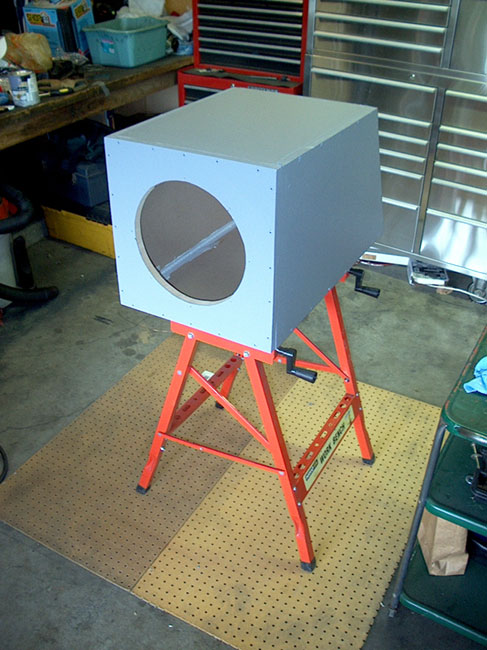

Below: Next I rolled on a few coats of exterior grade latex. Add about $15 to this project for paint and supplies.

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox17.jpg[/img]

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox18.jpg[/img]

Below: Hmm... what's this?

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox19.jpg[/img]

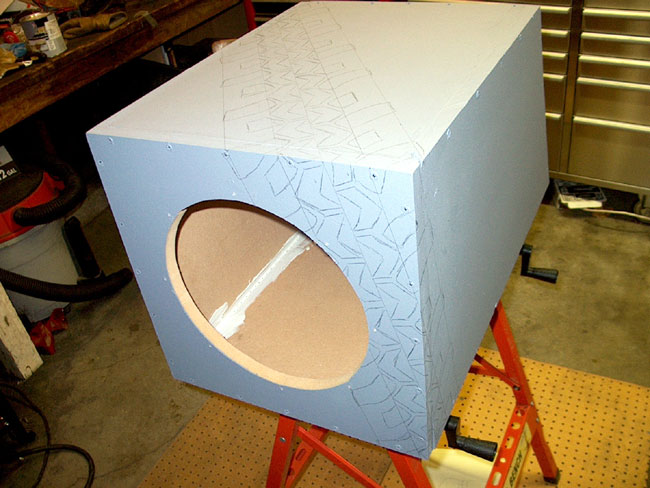

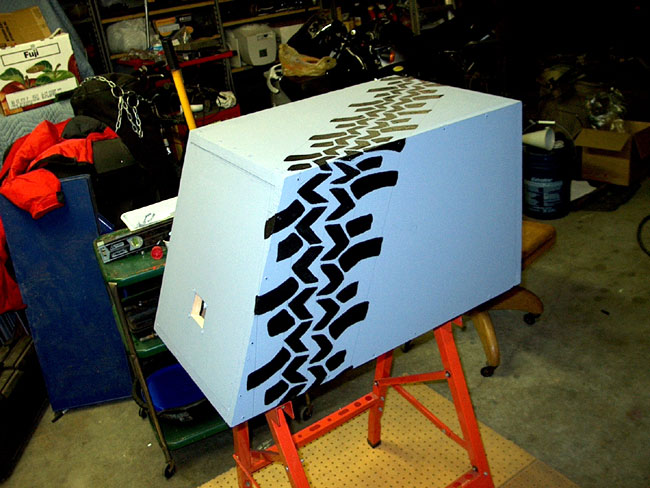

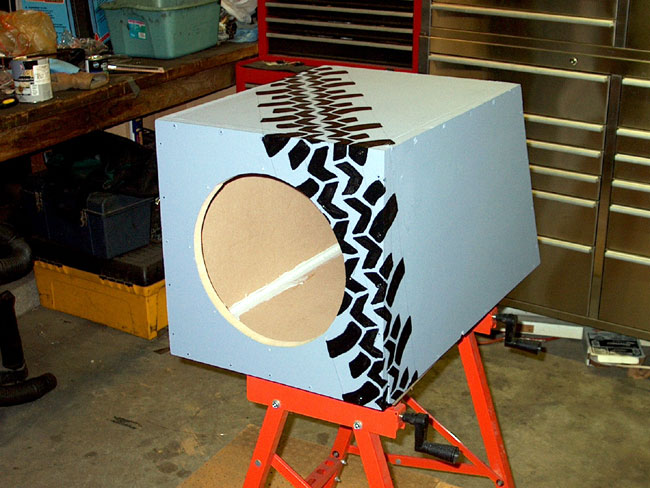

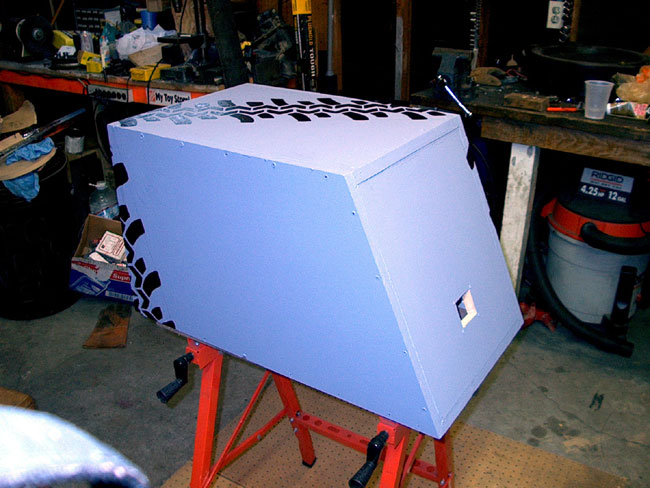

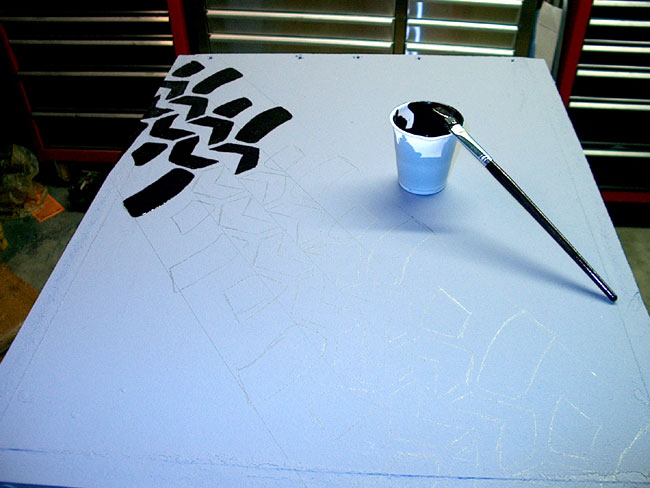

Below: Arts and crafts on an offroad website? Holy smokes...

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox20.jpg[/img]

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox21.jpg[/img]

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox22.jpg[/img]

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox23.jpg[/img]

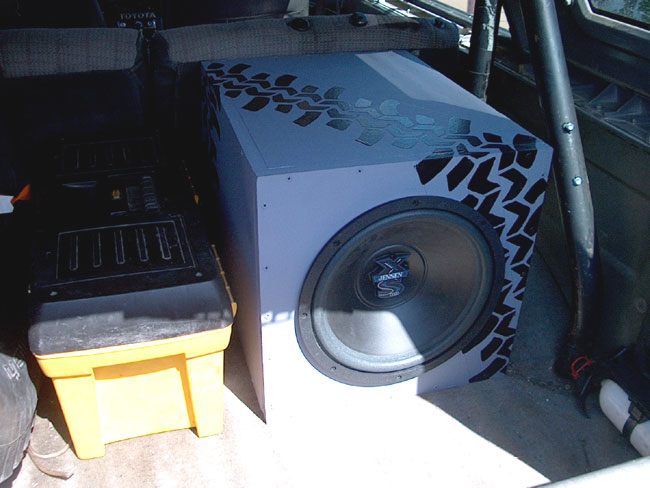

After putting the driver back in I stuck it in the truck again to see how it looked.

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox24.jpg[/img]

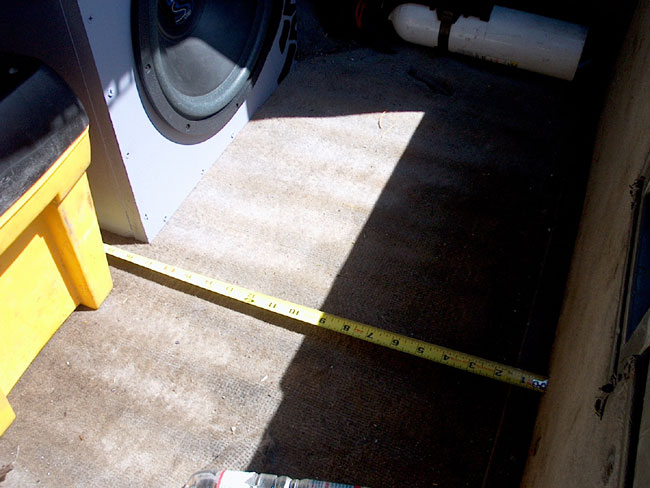

I've still got room for hacking my bed later down the road. I want to take about 12 inches out of it. Not sure where I'll put the spare tire at that point.

[img]http://thebandit.xtremefabricator.com/speakerbox/speakerbox25.jpg[/img]

There's still a bit of paint touch up to do as there are a few places that look kindergartenish, but what do ya think?

I've got a couple ideas for a speaker grill - we'll see how they pan out.
