Originally Posted by ES_97Sport
... The Atlas 2 & 4 speed transfer cases (now) will accept up to two open/closed switches ....

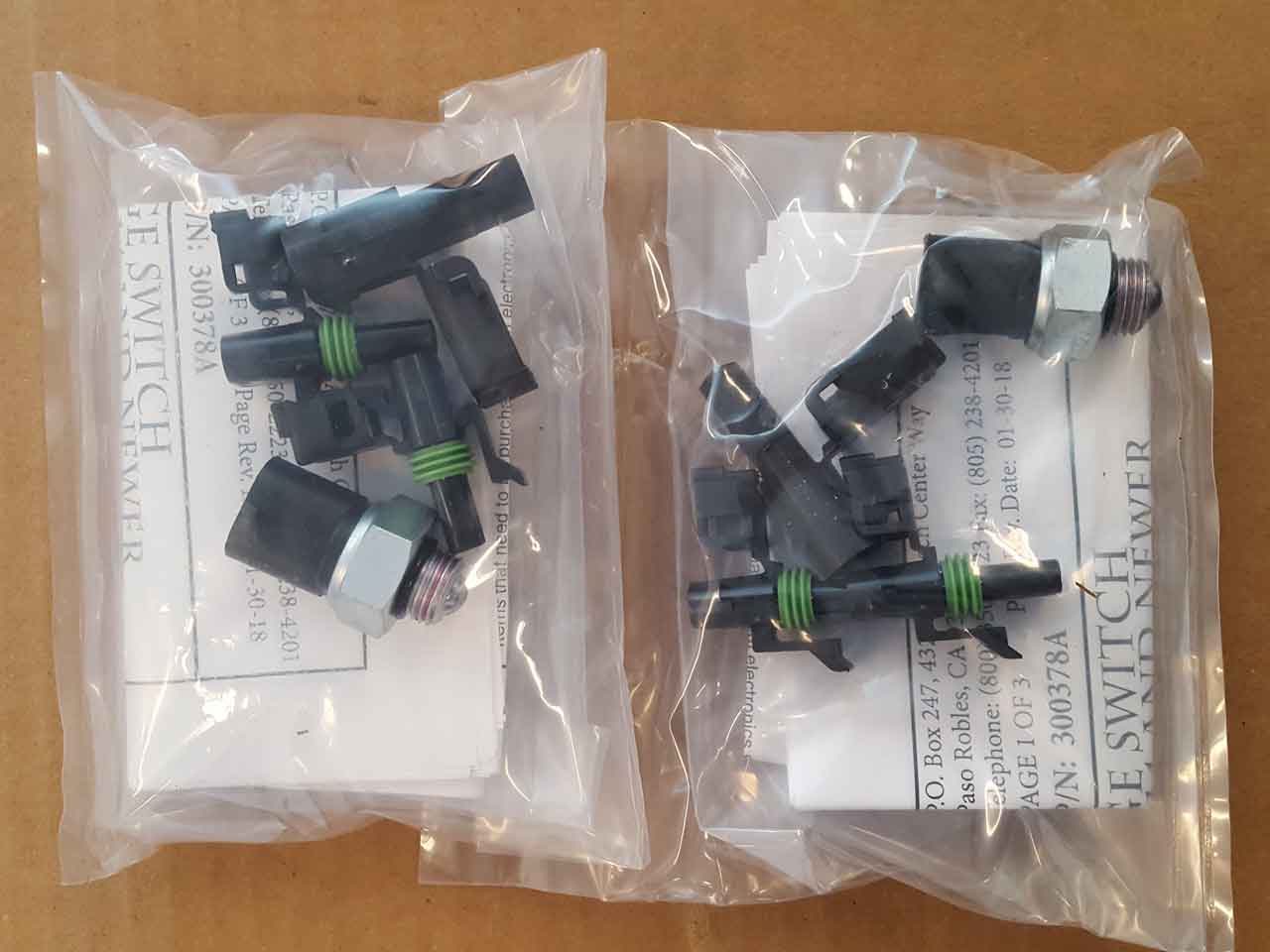

Two switch kits from Advance Adapters for the 2WD/4WD switch and Low Range switch. Note that these are the 300378 -A- parts for the post 8-2014 production transfer cases.
[Linked Image]

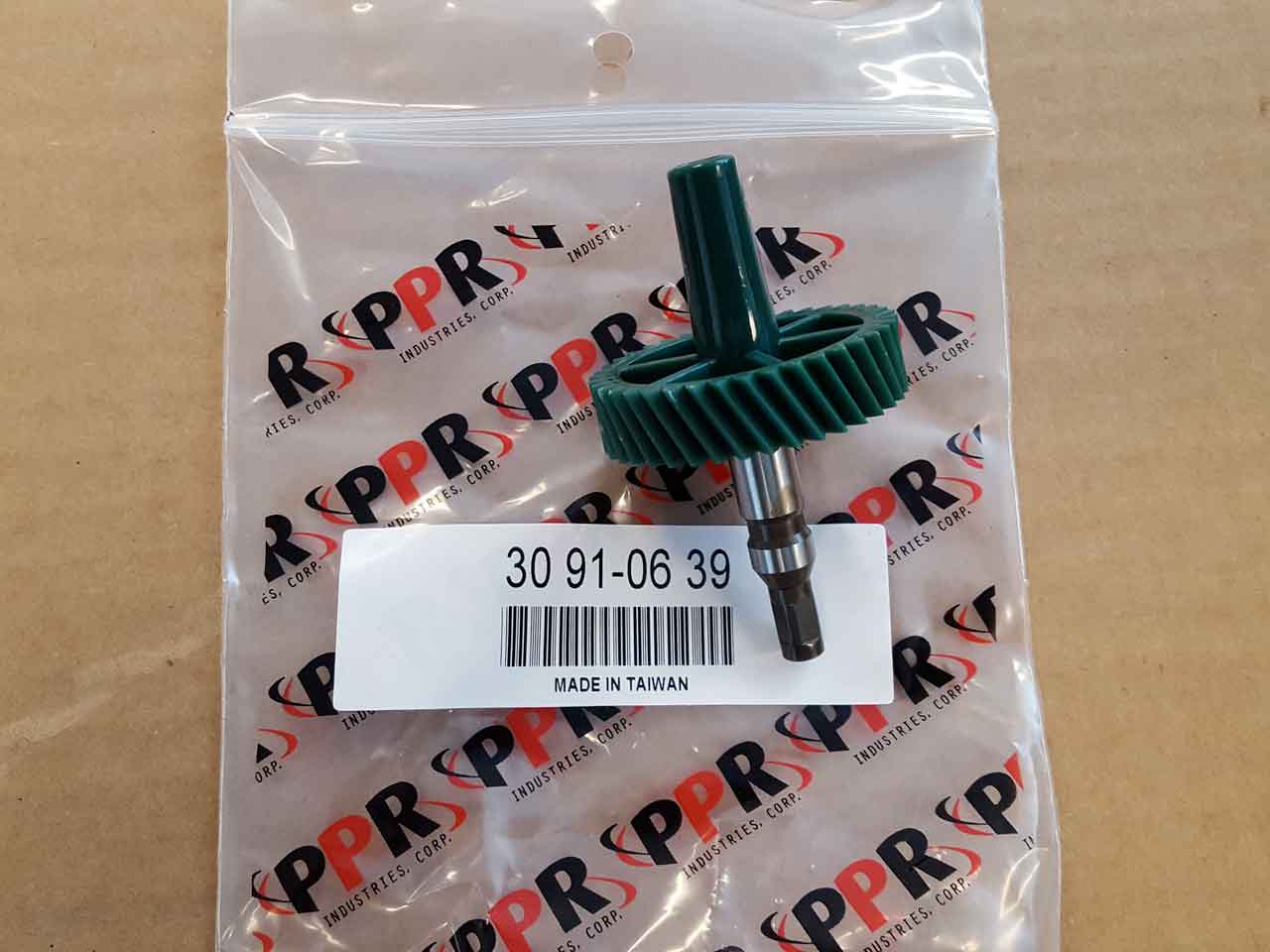

Advance Adapters speedometer gear for the Atlas transfer case. This is the 'short' (p/n 300637) speedometer gear for the Atlas electronic speedometer housing. (the mechanical speedometer housing uses different gears) This is the 39 tooth for a vehicle with 37" tires and 5.38:1 axle gears. It doesn't make all that much difference in my case because I'm using the SGI-5 speedometer converter from Dakota Digital and I could have ordered any gear and made all of the adjustments to correct the speedometer using the SGI-5, but I starting out in the ballpark is a good idea. smile
[Linked Image]

This is the last of the pieces for the transfer case. Everything is here and ready to go. STILL waiting on the axles ... sigh.

Edward
