AW4 A/T output adapter housing - pre-1998 on the right and 1998-2001 on the left. You can see the differences in the bosses for the output shaft speed sensor.
[Linked Image]

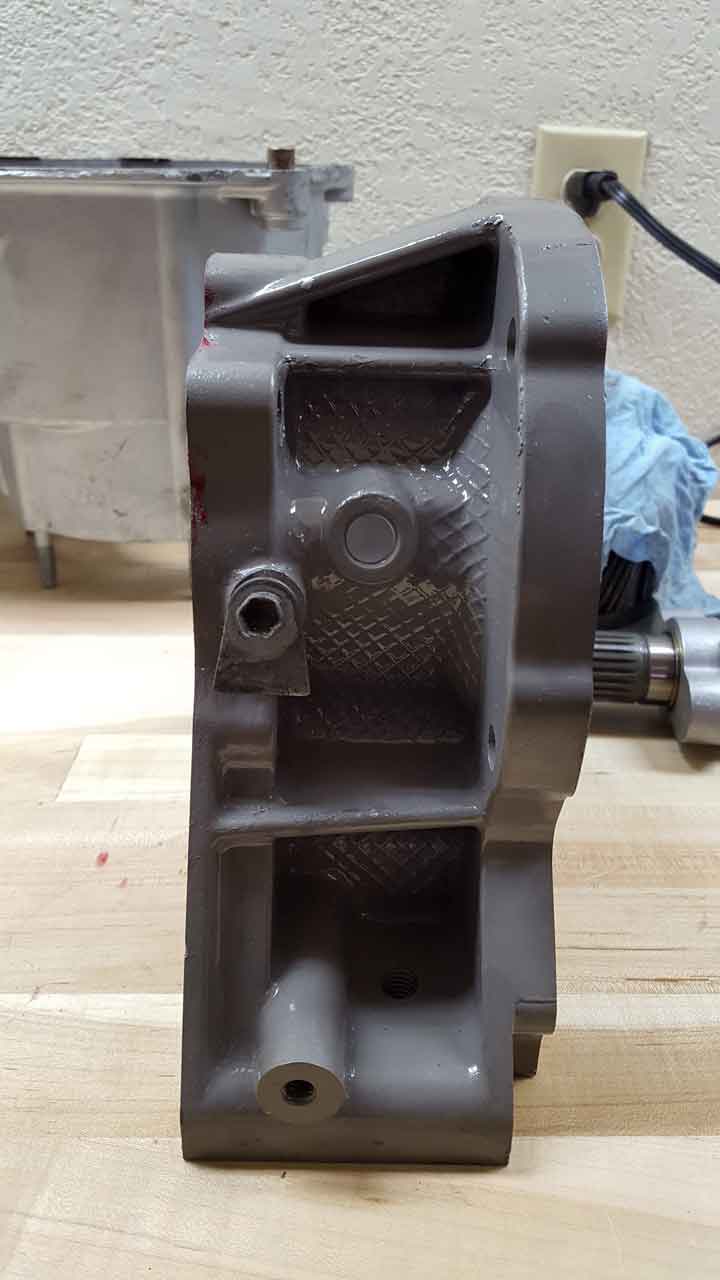

AW4 A/T output adapter housing pre-1998 with the retainer clip for the output shaft speed sensor.
[Linked Image]

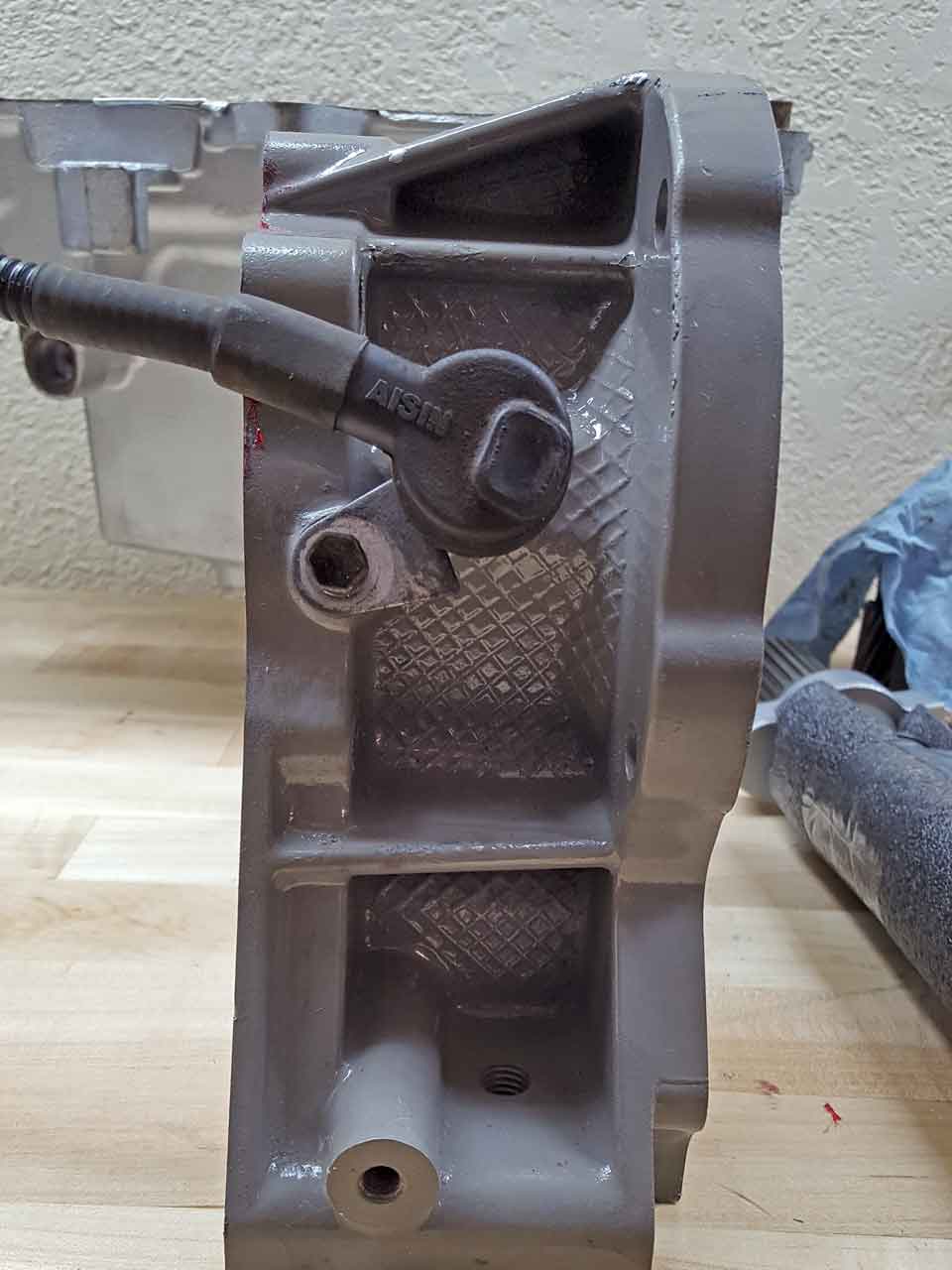

AW4 A/T output adapter housing pre-1998 with the output shaft speed sensor installed.
[Linked Image]

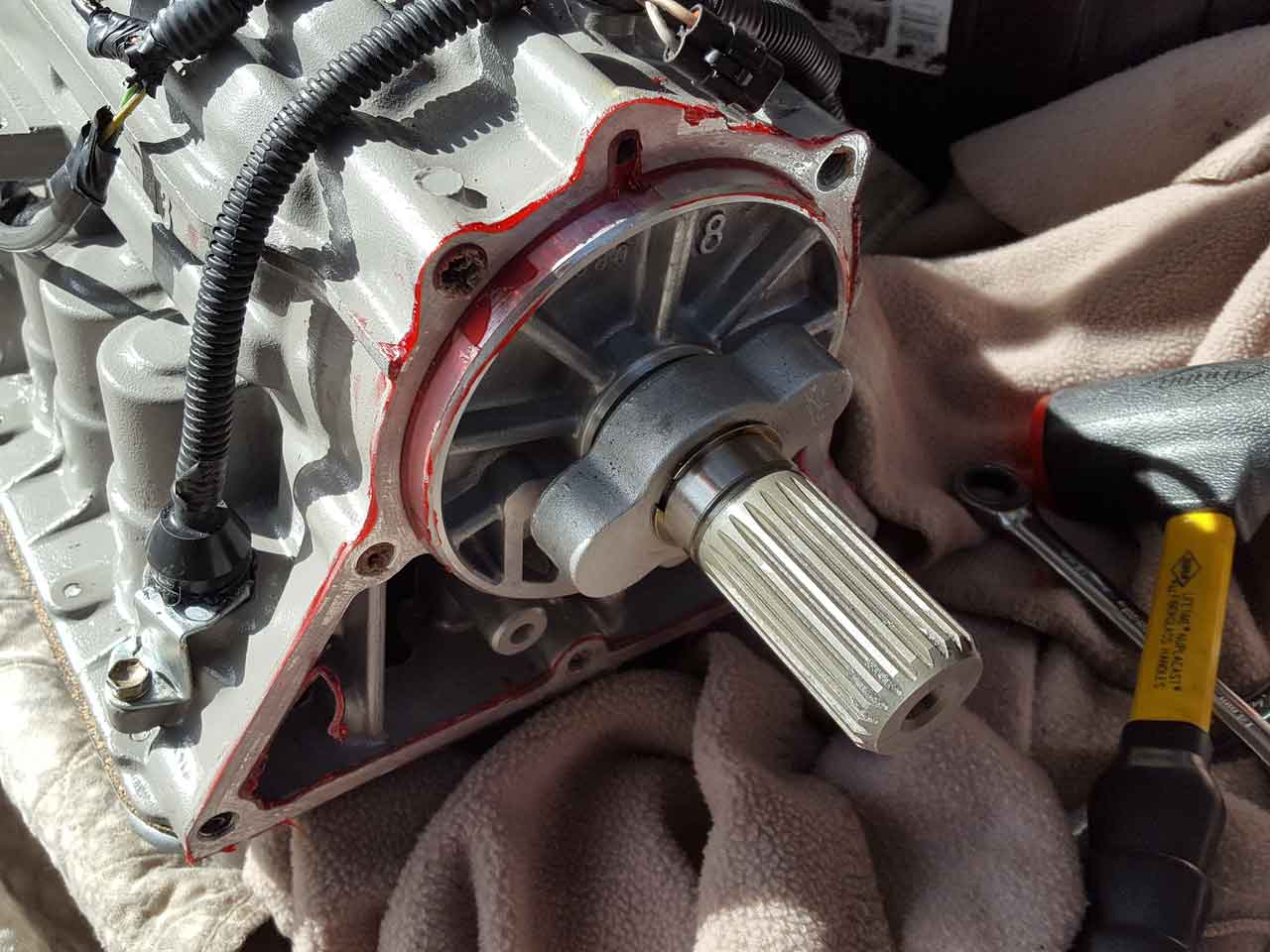

AW4 A/T output adapter housing pre-1998 internals - 1 PPR reluctor ring installed on 23 spline output shaft.
[Linked Image]

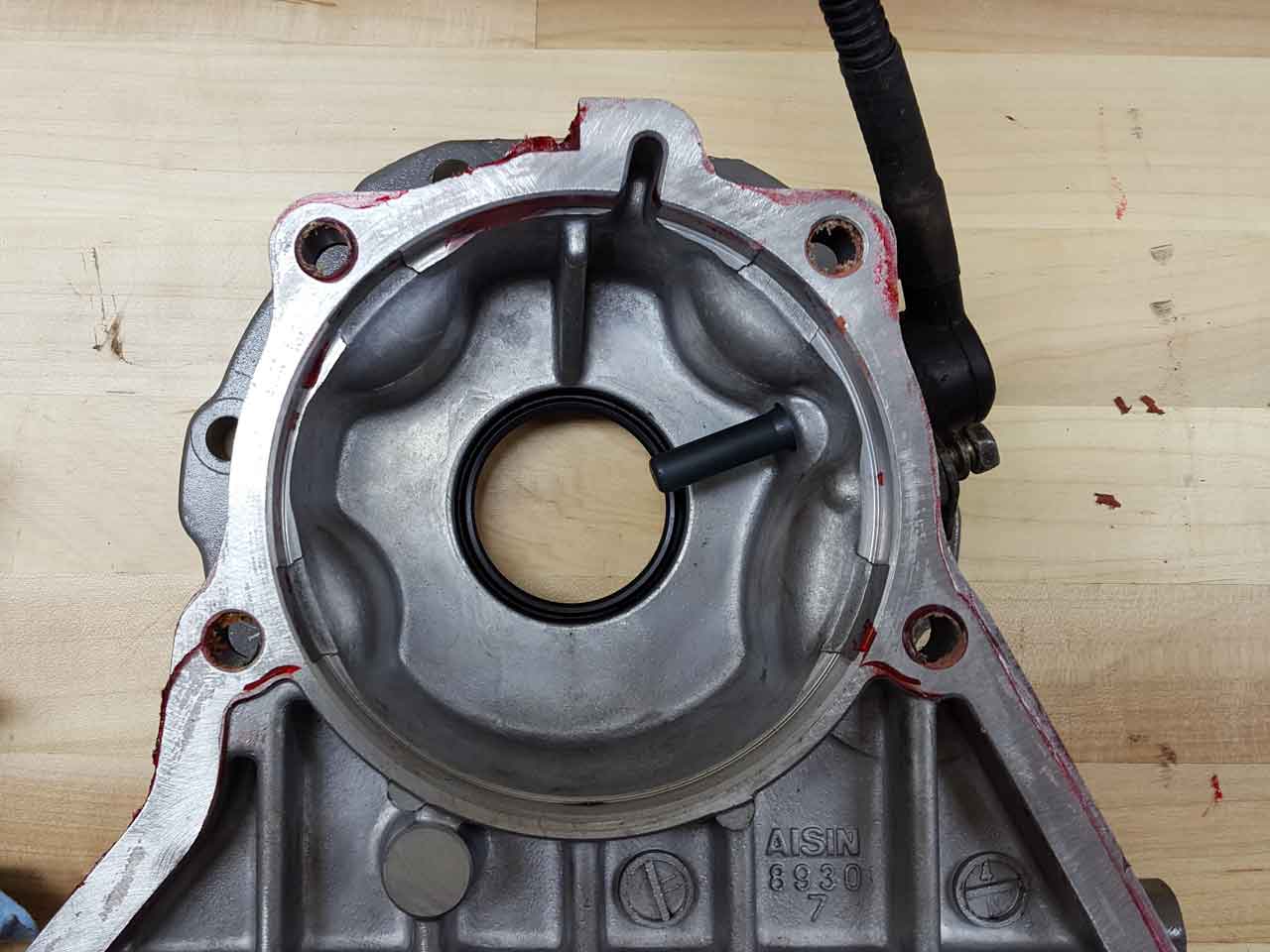

Inside view of AW4 A/T output adapter housing pre-1998 with the output shaft speed sensor installed.
[Linked Image]

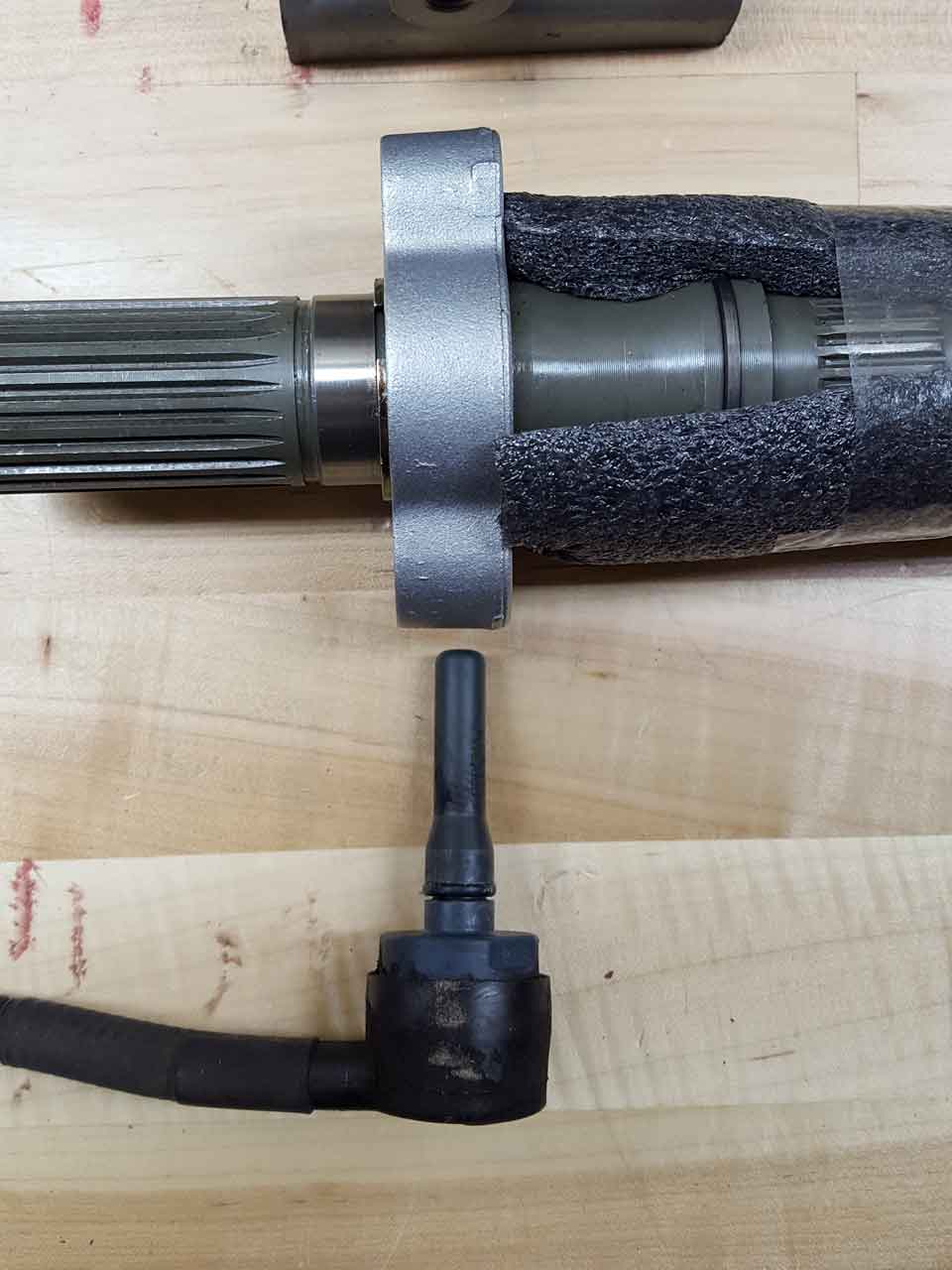

AW4 A/T output adapter housing pre-1998 output shaft speed sensor and reluctor ring installed on 23 spline output shaft.
[Linked Image]

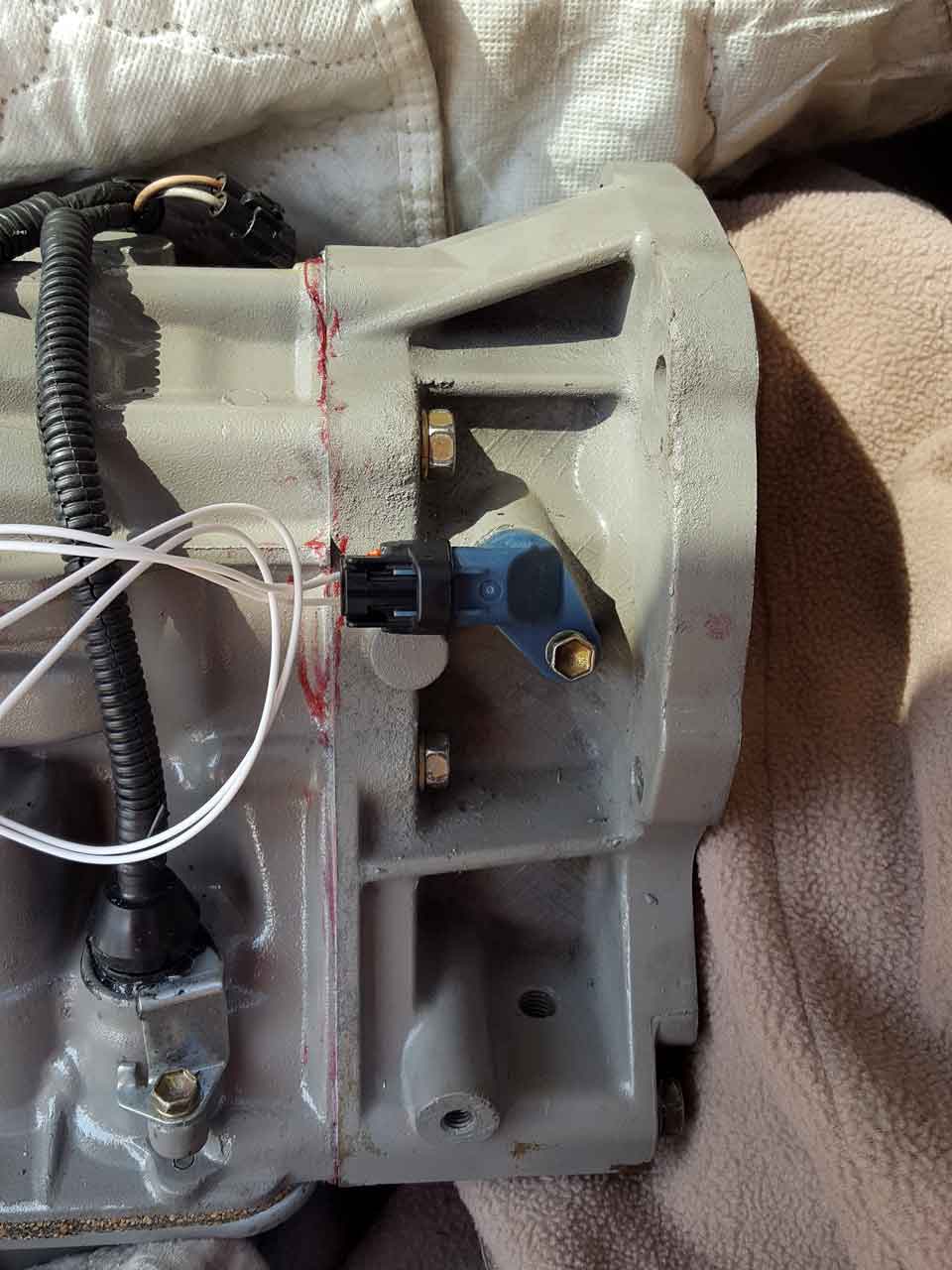

AW4 A/T output adapter housing 1998-2001 with the Jeep output shaft speed sensor (and a replacement connector/pigtail) installed.
[Linked Image]
AW4 A/T output adapter housing 1998-2001 with the 1997-1998 Mitsubishi Montero Sport V4AW3 output shaft speed sensor installed.
[Linked Image]

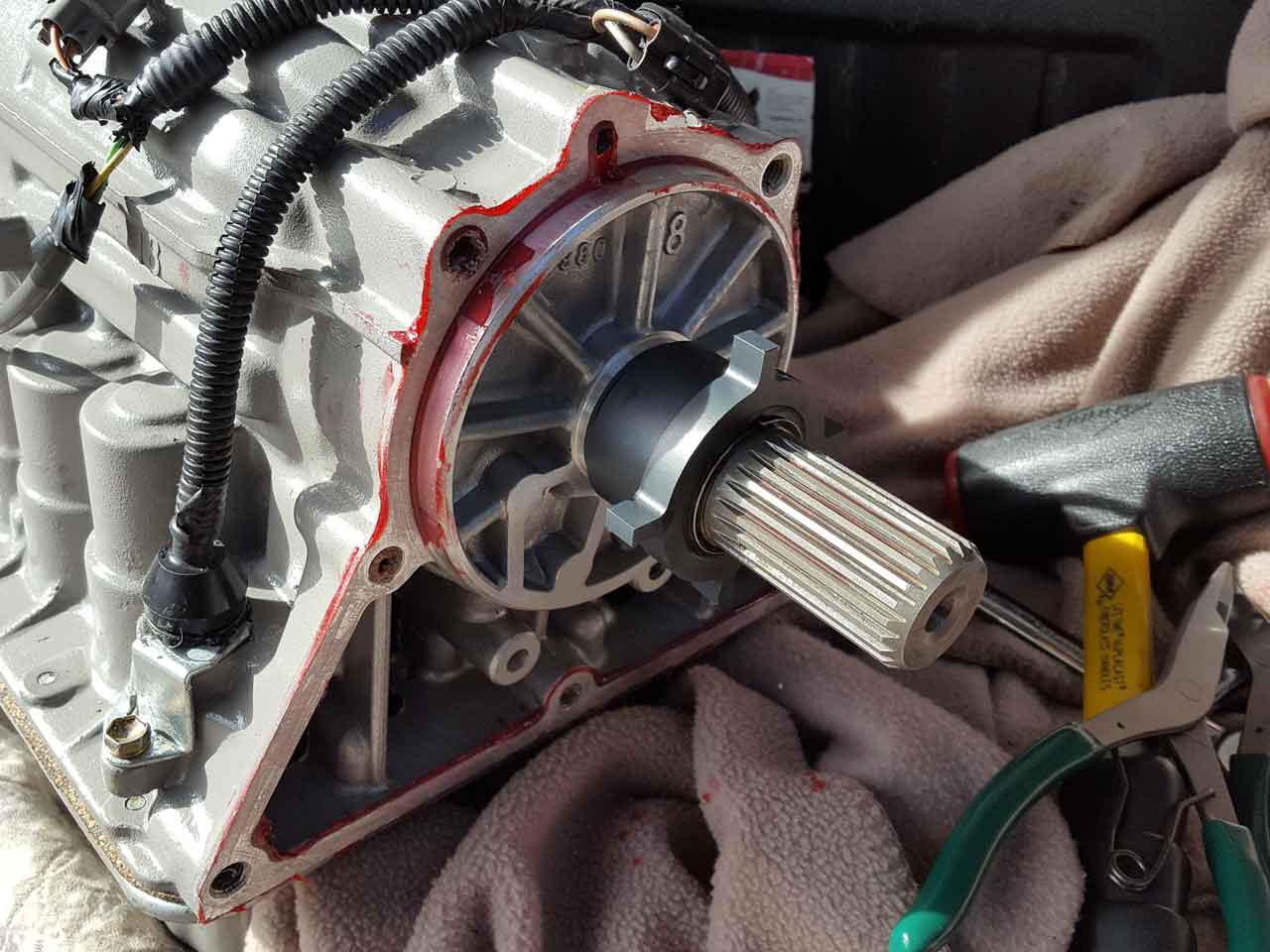

AW4 A/T output adapter housing 1998-2001 internals - 4 PPR reluctor ring installed on 23 spline output shaft.
[Linked Image]
