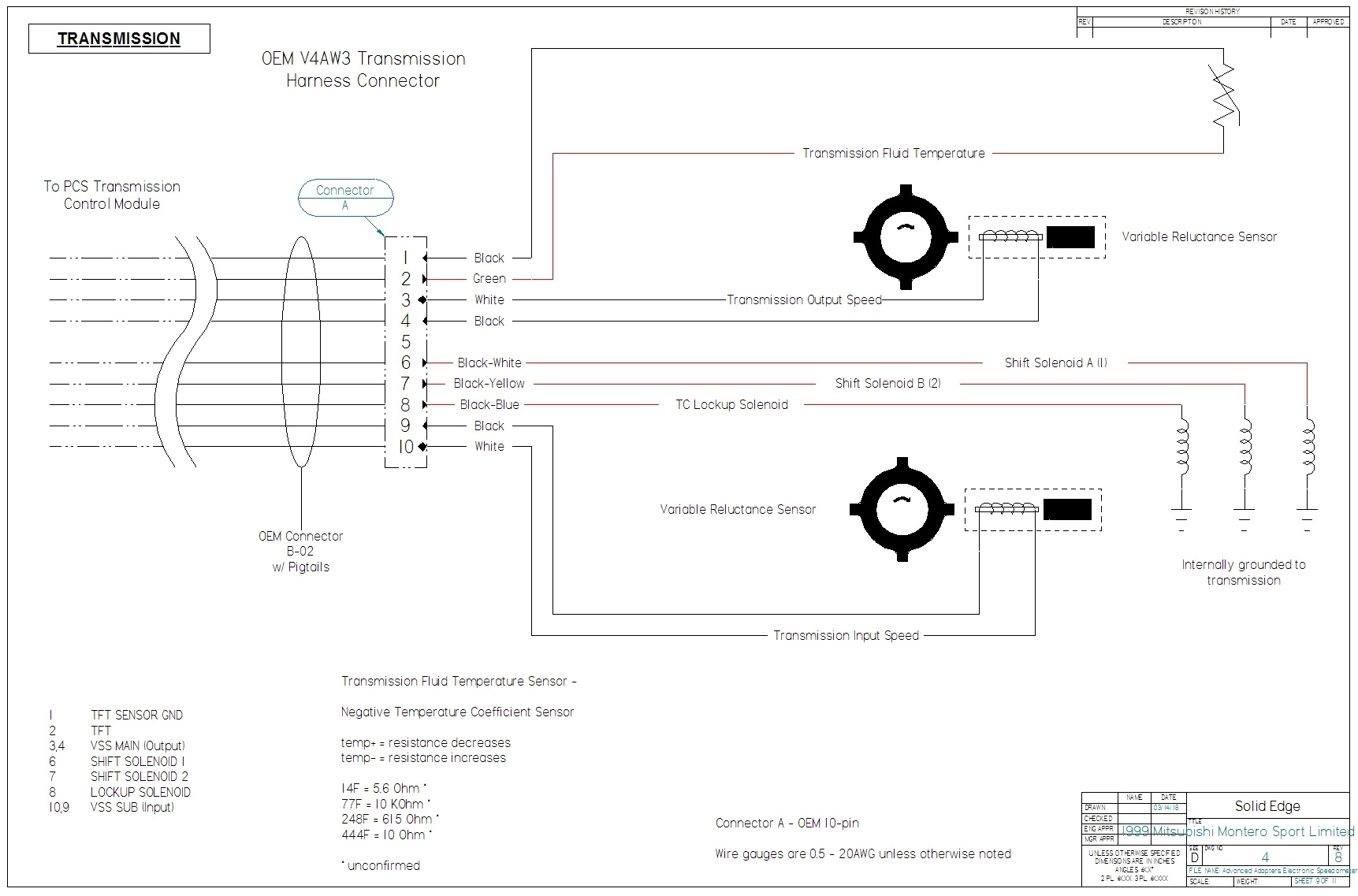

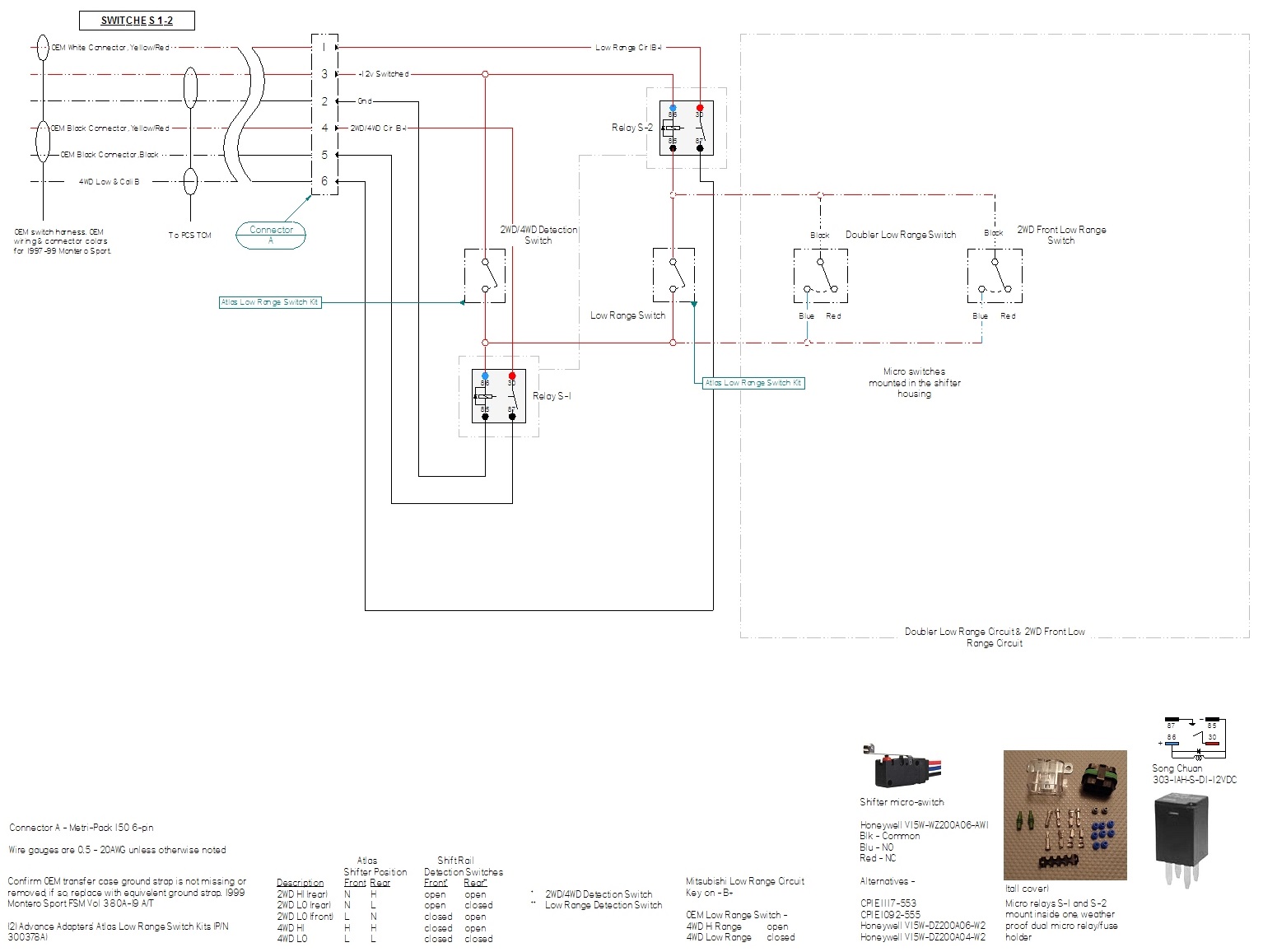

I think I'm finally done with all the wiring diagrams for the VSS, shifter TCM and transmission & t-case swap. Essentially, this is a LOT of wiring just to make the new setup do the exact same thing the original OEM setup does. smile Only without shift-on-the-fly and this will have full manual shifting when I want it. smile

[Linked Image]
[Linked Image]
[Linked Image]
[Linked Image]
[Linked Image]
[Linked Image]
[Linked Image]
[Linked Image]

(PDF that all the images were taken of, below...)
1999 Mitsubishi Montero Sport Limited 3.5L SAS, Transmission and T-case Swap (PDF)

Now, on to building the CAL file for the PCS TCM. smile

Edward
